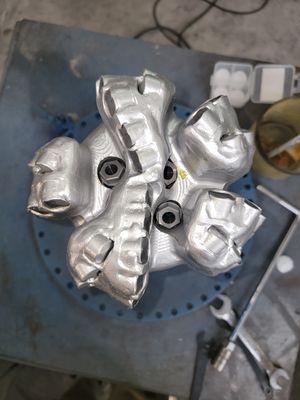

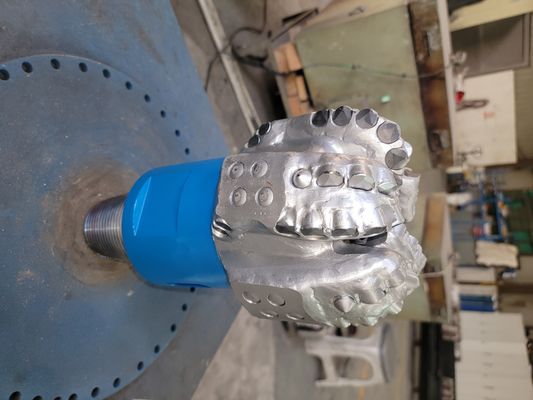

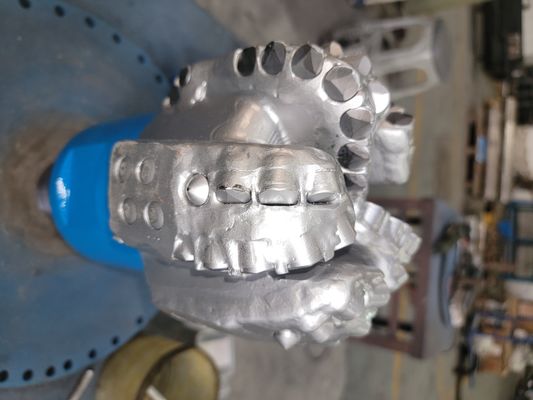

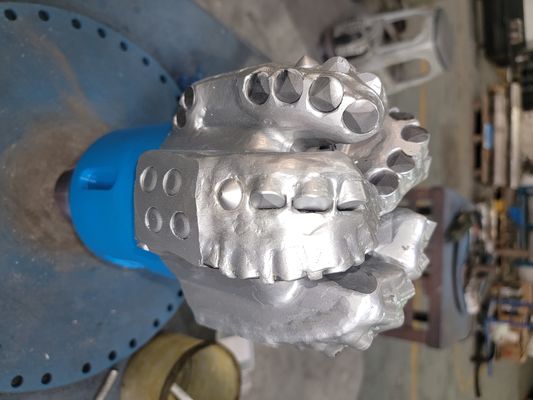

Factory 6-5/8 Inch Steel Body 5 Wings PDC Drill Bits For Oilfield Rock Drilling
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| گشتاور را تشکیل دهید | 9.5-12.2 KN.m | وزن در بیت | 9-67 KN |
|---|---|---|---|
| سرعت چرخشی | ۸۰ دهم | نرخ جریان | 11-15 LPS |
| برجسته کردن | 6-5/8 inch steel body PDC drill bits,5 wings PDC drill bits for oilfield,rock drilling PDC bits with steel body,5 wings PDC drill bits for oilfield,rock drilling PDC bits with steel body |
||
توضیحات محصول
Factory 6-5/8 Inch Steel Body 5 Wings PDC Drill Bits For Oilfield Drilling
PDC Drill Bits Classification by Applications:
Mining Industry
There are some 3-blade PDC bits mainly used for the mining industry in Australia and Russia, the formation is very soft. choosing a steel body PDC bit can save some drilling costs.
Water well drilling
Having higher ROP, diamond PDC drill bits are also widely used as water well drill bits for geothermal drilling.
Oil & Gas drilling
- It is the most widely used bit in the Oil &Gas drilling. Hydraulic factors are very important during drilling.
- PDC bits have been used in the areas that can't be available previously, such as harder, more abrasive, and more variable formations.
- The diamond PDC bit is mainly composed of the bit body, cutting teeth, nozzle, gauge protection, and API Thread connection.
| Body material: | steel body |
| Available size: | 6-5/8 inch |
| Painting color: | customized |
| Condition: | new manufacture |
| Place of origin: | Suzhou,China |
| Certificate: | API & ISO |
| Manufacture Processing: | forging |
| Usage: | water/oil/gas well |
| Warranty: | 1 year or based on products |
Cutters
The primary contact point of a drill bit is its PDC cutters, which are made of Polycrystalline Diamond Composite (PDC).
PDC bits excel at efficiently removing rock by chopping through it.
Operating in a challenging environment, PDC cutters experience frequent heating and cooling within the well.
To maximize performance, PDC cutters with superior thermal stability and minimal thermal deterioration are preferred.
These optimized cutters demonstrate higher Rate of Penetration (ROP) and enhanced wear resistance.
Nozzles
Drill bit nozzles play a crucial role in maintaining the temperature of the PDC cutters and clearing the cutting zone.
By keeping the PDC cutters cool, the nozzles contribute to their longevity and performance.
The positioning and angle of these nozzles significantly influence the effectiveness of the drill bit. Properly placed nozzles ensure efficient cooling and help prevent heat-related issues.
Additionally, the strategic arrangement of fluid channels, in conjunction with the nozzle location, facilitates improved removal of cuttings during drilling operations.
Package & Shipment:
FAQ:
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 10 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : All bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
